Product Description

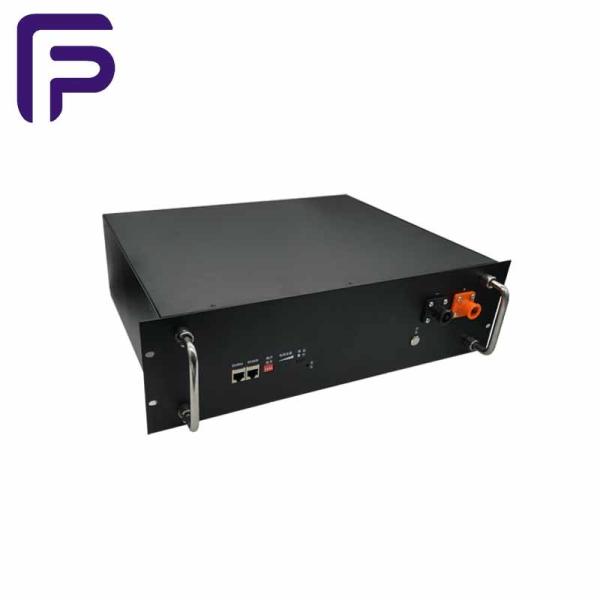

51.2V 50AH Rack Lifepo4 Battery Module For Energy Storage Equipment

Product Description Of 51.2V 50AH Rack Lifepo4 Battery Module:

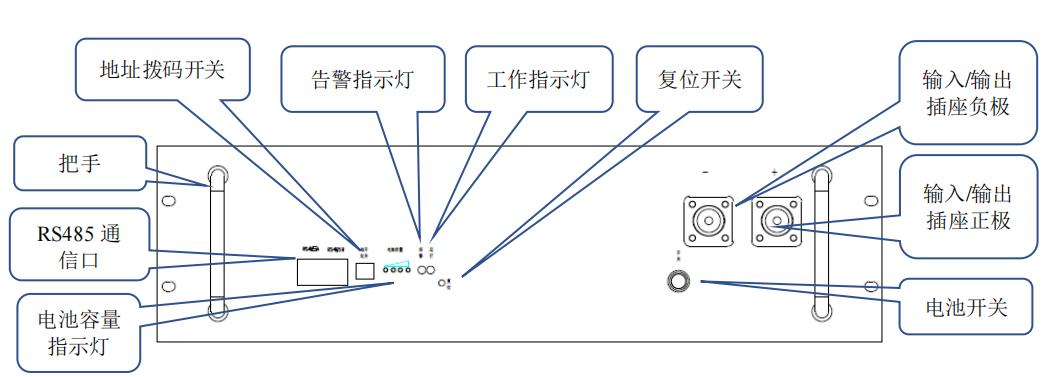

Work indicator: Green, lit in normal state
Fault indicator: Red, lit in case of overtemperature, overvoltage, undervoltage and overload
Capacity display: 4 LED display, 25%, 50%, 75%, 100%
The Li-ion battery pack should be stored in a cool, dry and well-ventilated area, and should be far from the fire and the high temperature

Product Basic Information Of 51.2V 50AH Rack Lifepo4 Battery Module:

​

Item	Specification
internal Impedance	≤10.0mΩ(Ac. 1kHz)
Operating temperature	Charging 0 ~ 45ºC; Discharging -40 ~ 55ºC
Maximum Charging Voltage	58.4V
Discharge Termination Voltage	40V(T≥-20ºC),32.0V(T<-20ºC)
Maximum Continuous Charging Current	50A
Maximum Continuous Discharge Current	100A
Dimension	≤480*350*130mm

​

Dongguan Funpack Elec Co., Ltd. Is A National High-tech Enterprise Integrating Research,design, Production And Related Technical Services Of Lithium-ion Batteries

From start, we have only focused on battery packs. Until today, we still provide reliable and safe customized solutions and products for lithium battery systems for users around the world

The company has obtained a number of national patents to provide many listed customers with feasible power solutions for smart home, security, Power Tool, Medical, Military and other industries

FUNPACK Elec has passed the ISO9001 international quality system certification. All products strictly comply with the ISO quality system. The products have passed CE, UL, CQC, ROHS, UN38.3 and other certifications. The products are mainly sold to first-line brand customers in China Japan, Europe and the United States. Our product and quality have been highly praised and recognized by customers. FUNPACK will provide you with high-quality products and services
