Product Description:

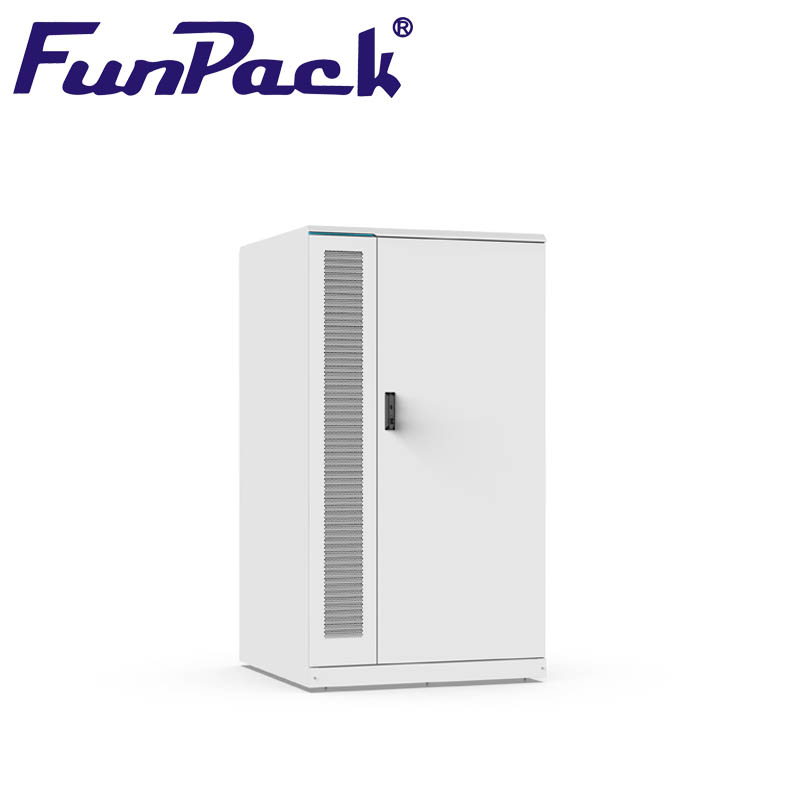

Rechargeable Track Outdoor Liquid-Cooled Battery LiFePO4 Battery Module

Product Description Of Liquid-Cooled Battery LiFePO4 Battery:

The TRACK liquid cooled battery system adopts a modular design concept, consisting of a lithium iron phosphate battery module, BMS, liquid cooled air conditioning, fire protection system, etc. The efficient liquid cooled battery module and heat dissipation design bring ultra-high energy density, while the temperature difference is less than 3 ° C. The integrated cabinet design is more flexible compared to container type, greatly simplifying transportation and on-site assembly work. It can be connected to PCS separately or used in parallel.

Product Basic Information Of Liquid-Cooled Battery LiFePO4 Battery:

​

Model	TRACK-1500-372
Cell type	LFP280
Group mode	1P416S
High-voltage box	PDU-1500-280-F1
Rated Voltage	1331.2V
Voltage range	1206.4V~1456V
Rated capacity	372.736kWh
Rated charge and discharge power	186kW
Rated charge and discharge current	140A
Maximum continuous charging and discharging current	280A
Charge and discharge efficiency	≥95%
Battery cluster internal resistance	≤20mΩ
Cycle life	≥6000cycles(0.5,25ºC80%EOL90%DOD)
Operating Temperature	Charge:0-55ºCdischarging:-20~55ºC
Recommended storage temperature	15~35ºC
Relative humidity	0~90%RH
Maximum allowable altitude	4000m(over 2000 m,it will operate in derating)
Self power consumption/month	≤3%
Cooling method	Liquid cooling
Manufacturing process	Laser welding
Communication mode	CAN/RS485/dry contact
Dimensions(WXDXH)	1300±5mm1300±5mm*2300±5mm

​

Main Applications :

Widely used in various energy storage scenarios such as new energy consumption, peak shaving and valley filling, emergency power reserve, and dynamic capacity expansion

FAQ:

Q1. Are you factory?

A: Yes, we are professional manufacturer for polymer batteries since 2017.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipm

Q3: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.

Dongguan Funpack Elec Co., Ltd. Is A National High-tech Enterprise Integrating Research,design, Production And Related Technical Services Of Lithium-ion Batteries

From start, we have only focused on battery packs. Until today, we still provide reliable and safe customized solutions and products for lithium battery systems for users around the world

The company has obtained a number of national patents to provide many listed customers with feasible power solutions for smart home, security, Power Tool, Medical, Military and other industries

FUNPACK Elec has passed the ISO9001 international quality system certification. All products strictly comply with the ISO quality system. The products have passed CE, UL, CQC, ROHS, UN38.3 and other certifications. The products are mainly sold to first-line brand customers in China Japan, Europe and the United States. Our product and quality have been highly praised and recognized by customers. FUNPACK will provide you with high-quality products and services
