Lithium Ion Wearable Device Battery 800mA 300 Times Cycle Life ODM For Smart Helmet

Ask Lasest Price
Brand Name :	FUNPACK
Model Number :	693034.0101 3C Battery
Certification :	UL ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/P, D/A, L/C
Supply Ability :	10000PCS /Day
Delivery Time :	30-45 work days

Add to Cart

Product Details
Company Profile

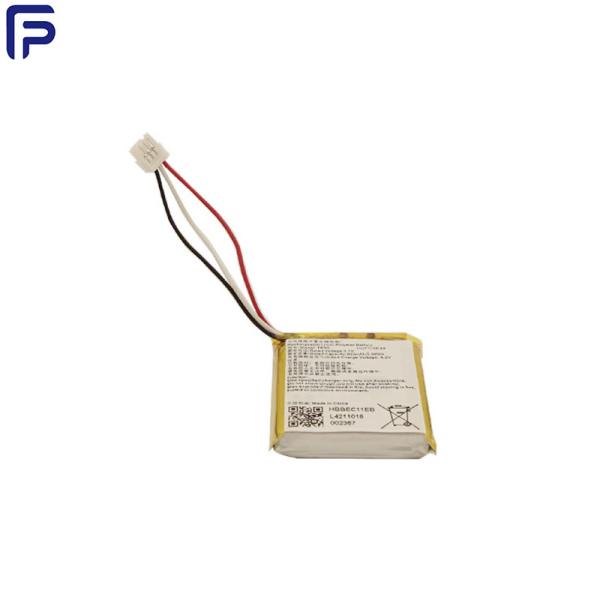

Lithium Ion Wearable Device Battery 800mA 300 Times Cycle Life ODM For Smart Helmet

Rechargeable Lithium Ion Polymer Battery 800mA 3.7V 300 Times Cycle Life For Smart Helmet

Product Description:

Worldwide approvals and certification of safety standards

No development costs, fast time-to-market

Life expectancy: Up to 80% of initial capacity after 300 cycles

Smart batteries with numerous features according to the SMBus specification

Rechargeable batteries have built-in high quality PCB board,

thermal protectors and circuit breakers,

effectively avoiding the over-charge, and short circuit.

High Capacity with Small Size.

Product Parameters:

Item	Specification
Pack Configuration	1 Series 1 parallel
Minimal Capacity(Cmin)	800mAh /2.96Wh
Typical Capacity	824 mAh/3.05Wh
1C discharge Capacity	720mAh/2.66Wh
Typical Voltage	(3.7*1S1P) V
Charge Cutoff Voltage	(4.2±0.03*1S1P) V
Discharge Cut-off Voltage	(3.0*1S1P)V
RT Cycle life	300 cycles
Pack Weight	~16g
Initial resistance	≤ 230mΩ
Allowable Humidity Range	10%～90%
Pack Voltage (V) (as of shipment, Alternative)	3.60～3.78V	Air transport (IATA require shipping voltage <=30% SOC)
Pack Voltage (V) (as of shipment, Alternative)	3.70~3.90V	Non air transport
Charge/Discharge	Cell Surface Temperature	Charge Current and Voltage
Standard Charging	0.2C	Standard charge means charging at 160mA(0.2Cmin) to 4.2V in 23±2℃
Standard Charging Time	≥6h	Charging time with 160mA max to 4.2V, then CV to 0.02Cmin
Charge	-10℃ to60℃	160mA Max to 4.2V, then CV to 0.02Cmin
Standard Discharge	0.2C	Standard discharge means discharging at 160mA(0.2Cmin) down to 3.0V in 23±2℃
Discharge	-30 to -60℃	400mA discharge (4.2V~ 3.0V)
Standard Discharging Time	≥5h	Charging time with160mA Max discharge to 3.0V time；
Storage Temperature	-20 to 45℃	1month recovery≥85%,thickness swelling ≤3%
	-20 to 35℃	6months recovery≥85%,thickness swell ing ≤2%
	-20 to 25℃	12months recovery≥85%,thickness swell ing ≤1%

Main Applications :

Mainly used for Wearable Devices, such as Smart helmet ,Google's Glass headset iWatch,Solar glasses ect.

FAQ:

Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
