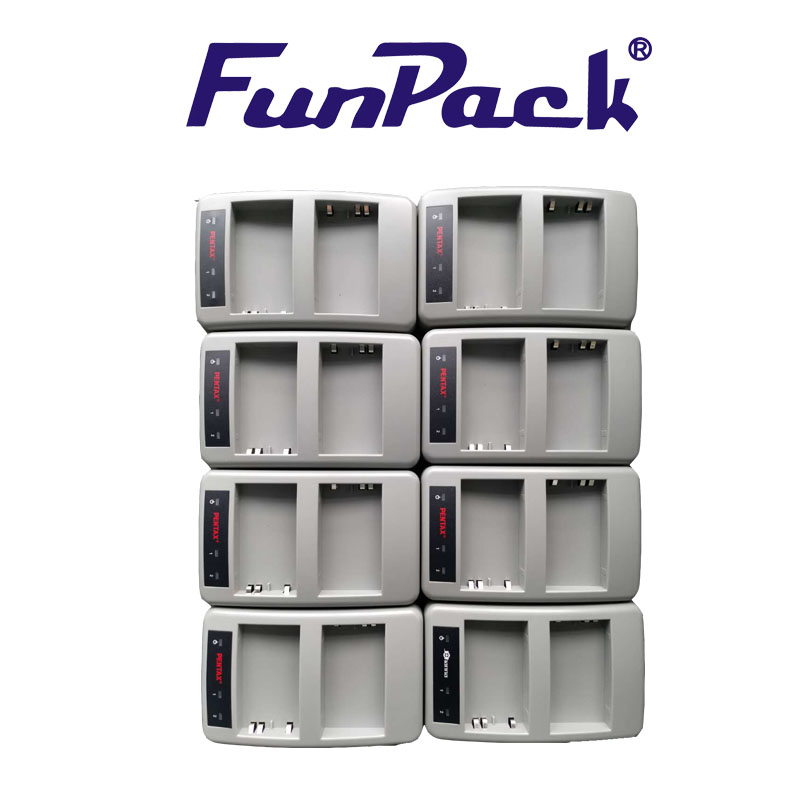

19v2a dual channel battery charger with protection circuit Ti and Dallas chip communication adapter instrument battery

Product basic information:

Item	Specification
rated floating charge voltage	8.37v ± 0.03V.
output no-load voltage	9.6V ± 0.3V.
the rated output current	1.5A ± 0.15A
the full light current	0.12A ± 0.01A
stop charging current	0.05A ± 0.01A.
LED	LED3: power indicator, green always on after power on; LED1: charging status indicator, red light when charging, green light when full, and off when charging; LED2: charging status indicator. It is red when charging, green when full, and off when charging.
protection
Voltage range
overvoltage protection	when the component fails or the floating charge voltage exceeds 8.7v ± 0.1V, the charger will automatically protect and cannot be recovered after protection.
overcurrent protection	output overcurrent protection current: 1.8A max.
Enclosure box size(L*W*H)	TBD
working temperature	Charge:-20~55℃
short circuit protection output will not damage the product after short circuit, the short circuit will return to normal output, and the output short-circuit current will be 2A max.	Disharge-20~60℃

Main Applications :

Provide independent and reliable battery chargers for various digital products, which are used in various instruments, digital and SLR cameras, monitoring equipment, toys, total station, etc
