38Ah 3.2V Li Ion Battery Cell For EV ESS Application 3500 Cycle Life

Ask Lasest Price
Brand Name :	FUNPACK
Model Number :	FP-C5E2240
Certification :	CE UL ROHS REACH
Price :	Negotiated The Price
Payment Terms :	T/T, D/P, D/A, L/C
Supply Ability :	1200PCS /Day
Delivery Time :	30-45 work days

Add to Cart

Product Details
Company Profile

38Ah 3.2V Li Ion Battery Cell For EV ESS Application 3500 Cycle Life

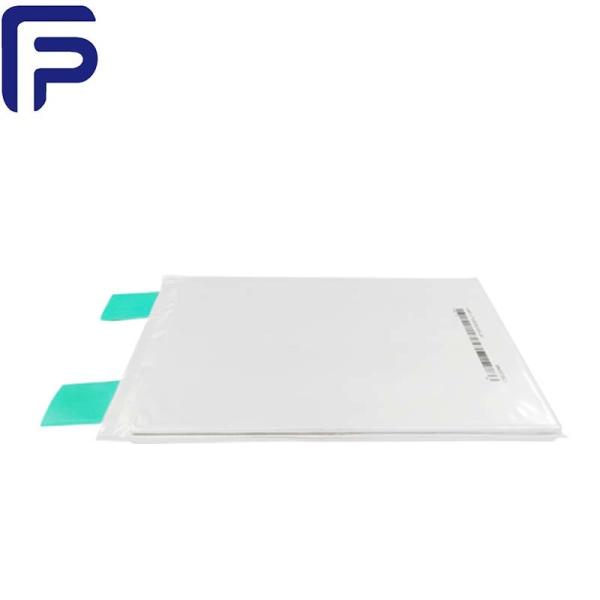

38Ah 3.2V Flexible Packaging Lithium Ion Battery Cell For EV or ESS Application

Product Description:

A quality cell, large capacity, lasting power
Intelligent protection plate, protect the battery but charge, but release, not short circuit
High quality wire, copper wire is not easy to break
Safety and environmental protection battery, non-toxic, harmless and pollution-free, green environmental protection

Basic specification:

Items	Specification
Charge voltage (V)	3.65
Nominal voltage (V)	3.2
Minimal capacity(Ah@0.2C Discharge)	37
Typical capacity(Ah@0.2C Discharge)	38
Standard charging method(@25±2°C)	0.2Cm CC Charge to 3.65V, then CV to 0.02Cm cutoff
Charging time (h)(Ref.)(@25±2°C)	5.5h
Max continuous/pulse charge current (C)	1.0/1.5
Max. continuous discharge current (C)	3
Max. 10S pulse discharge current (C)	4
Discharge Cut-off Voltage (V)	@ > 0 °C2.5
Discharge Cut-off Voltage (V)	@ ≤ 0°C 2
Operating temperature (°C)	Charging temperature:0~ 45
Operating temperature (°C)	Discharging temperature: -20 ~ 60
Storage environment (°C)
-20 to 45	1month recovery capacity≧90%
-20 to 35	3month recovery capacity≧90%
-20 to 25	12month recovery capacity≧90%
After ~50% charged Cell are stored at 35°C for 3months or RT for 12months or 45°C for 1 month, measure the recovered capacity with Standard charge/discharge method @ RT environment 90% of initial capacity.
ACIR@RT, 50%-SOC (mohm)	≤1.0
Cell Weight Approx.(kg)	0.8
Cell Typical Dimension(mm)	LWT 24214112.8 mm
Standard Charge
0.2Cm	Constant Current
3.65V	Constant Voltage
0.02Cm	Cut off Current
0~+45°C	Temperature
Semi-fast Charge
0.5Cm	Constant Current
3.65V	Constant Voltage
0.05Cm	Cut off Current
+10~+45°C	Temperature
Fast Charge
1.0Cm	Constant Current
3.65V	Constant Voltage
0.02C	Cut off Current
+25~+45℃	Temperature
Continuous Operation	5 ~ 45°C
Excursion	-20 ~5°C
1st Over Voltage Limit	≤3.75V
2nd Over Voltage Limit	≤3.80V
1st Under Voltage	≥2.40V
2nd Under Voltage	≥2.00V

Main Applications :

It is suitable for Portable energy storage, home storage, machine station, two wheeled vehicle, UAV, electric motorcycle, ship

mooring, photovoltaic.

FAQ:

Q1: Are you a trading company or manufacturer?
A: We are professional manufacturer specialized in Lithium ion batteries and LiFePO4 batteries for Electric bicycle, Electric scooter, Electric motorcycle, Electric Tricycle, Sharing bike, vacuum cleaners, Energy storage system for Industrial and household, as well as customized battery packs application.

Q2: What’s your battery product range?
A: The battery range we can make is voltage from 3.2V to 100V, Capacity from 1Ah to 100Ah.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.

Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.

Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and

packages before shipment.

Q6:What is your terms of delivery ?
A:EXW, FOB, CIF, DDU.
