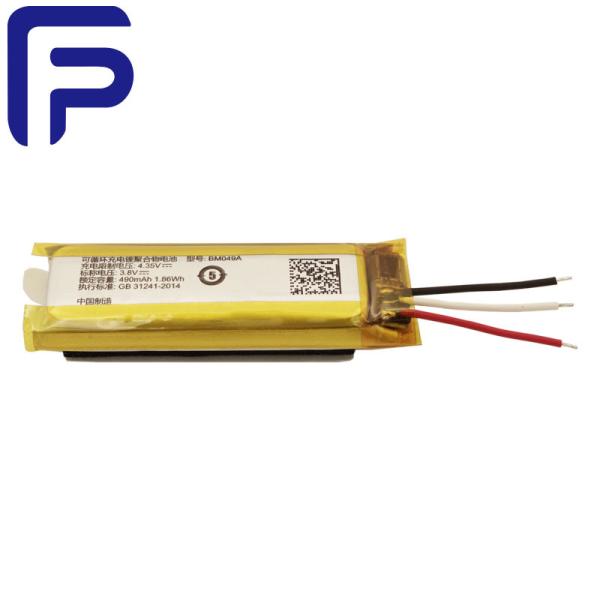

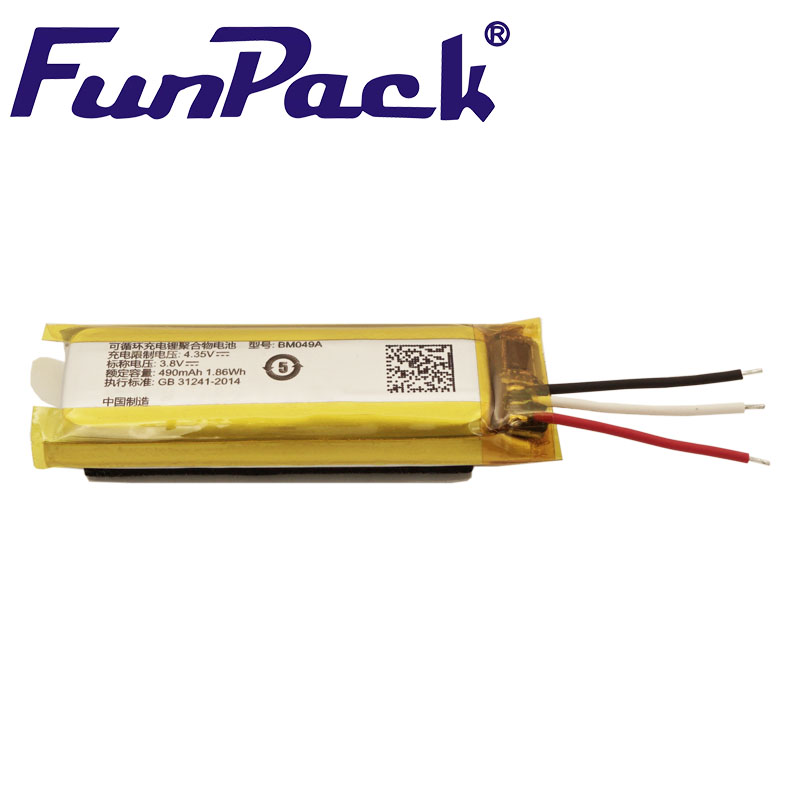

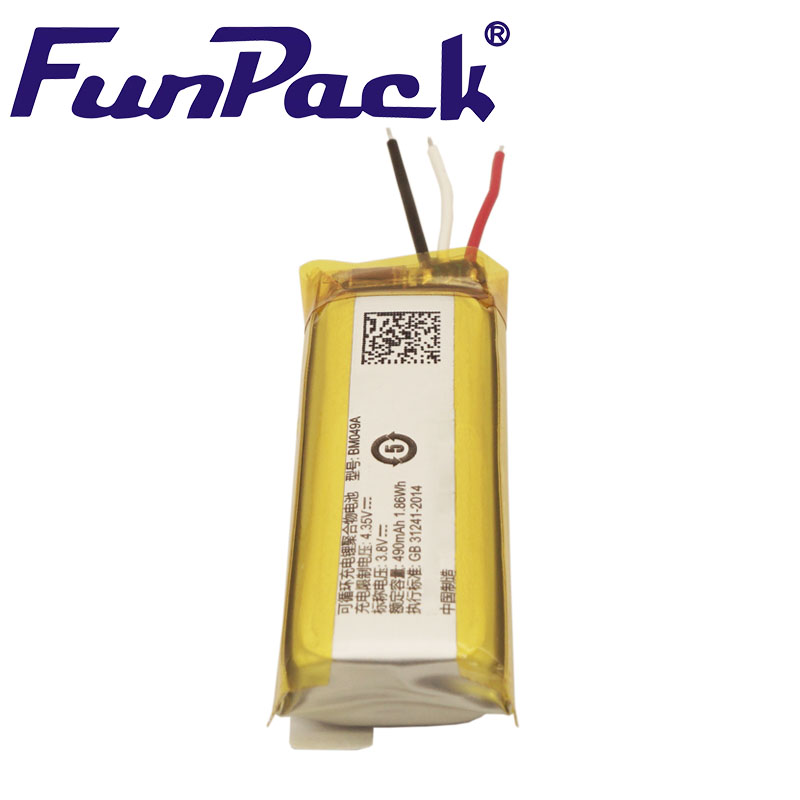

Lithium-ion Polymer Rechargeable Battery Pack 510mAh 3.8V With PCB
Medical Device Battery
Features:
Standard Polymer battery pack 1s1p
with 3.8V / 510mAh /1.838 Wh
Worldwide approvals and certification of safety standards
No development costs, fast time-to-market
lithium-ion cells with the market’s highest energy density
Product materials can be customized according to customer
requirements
Numerous and redundant safety features, e.g.
CUV (Cell Under Voltage): protection against deep discharge
COV (Cell Over Voltage): protection against over charge
OTD (Over Temperature in Discharge): Protection against overheating
during discharging
Life expectancy: Up to 80% of initial capacity after 500 cycles
High Light:
Rechargeable batteries have built-in high quality PCB board,
thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.
High Capacity with Small Size
Product Description:
This is our newly designed polymer battery pack. With the latest
structural design, the battery capacity of 510mah
is made in a very small size, which is suitable for the internal
layout of various small-size electronic products. The
battery can also be used in medical products and wearable products,
and is suitable for various Bluetooth headset
trackers, etc.
Through advanced battery program management and deep participation
of cell factory, you can customize battery
and circuit board parameters anytime, anywhere. It is convenient to
apply the battery to various fields.
Product Parameters:
Item | Specification |
CELL | 701541-01 |
Weight | 8.30g |
PCM | PCM |
Dimensions | 43*15*7.5mm |
Charge mode | Constant current-constant voltage charge |
Discharge mode | Constant-current discharge |
Battery minimum Capacity | 490mAh |
Battery Typical Capacity | 510mAh |
Parallel-serial mode | 1S1P |
Cell Model | 701541-01 |
Typical Voltage | 3.8V |
Charge Cut-off Voltage | 4.35±0.05V |
Discharge Cut-off Voltage | 3.0V |
Max Charge Current | 1.0C |
Max Discharge Current | 1.0C |
Maximum Pulse Discharging Current | / |
Initial resistance | ≦345mΩ(reference) |
Allowable Humidity Range | 60%±25% R.H. |
Shipment voltage(V) | 3.90V ~ 4.00V |
Standard Charge Method | Charge Temperature |
0°C~15°C |
15°C~45°C |
45°C~60°C |
Standard Discharge Method | -20℃~ 60℃ |
Operation Temperature | Charging 0°C to 60°C |
Discharging -20°C to 60°C |
RT Cycle life(25°C±3°C) | 1.0Cmin Max Charge to 4.35V, CV until charge current to 0.05Cmin
.then 1.0Cmin discharge to 3.0V, repeat to 500 cycles, record the
remained capacity |
|
Main Applications :
For medical device, bluetooth, headphone, pos machine, medical
device, mobile,
powerbank, GPS,Smart watch
Main Functions:
Lithium Polymer batteries make it possible for small objects to
achieve intelligence. Bendable Lithium Polymer cells
open up new applications for lithium-ion batteries. For small, thin
and flexible devices such as smart cards, trackers
and smart wearables, Lithium Polymer battery can provide a certain
amount of electric energy to drive their functions
of signal transmission or data acquisition. And Lithium Polymer
secondary battery allows charging and discharging
cycle, broadening the servicing life of electronics products.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized
is available.
Q2. What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive.
Airline and sea shipping also optional.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we
quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
deposit for formal order. Fourthly we arrange the production.
Q5. Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral
packaging.
