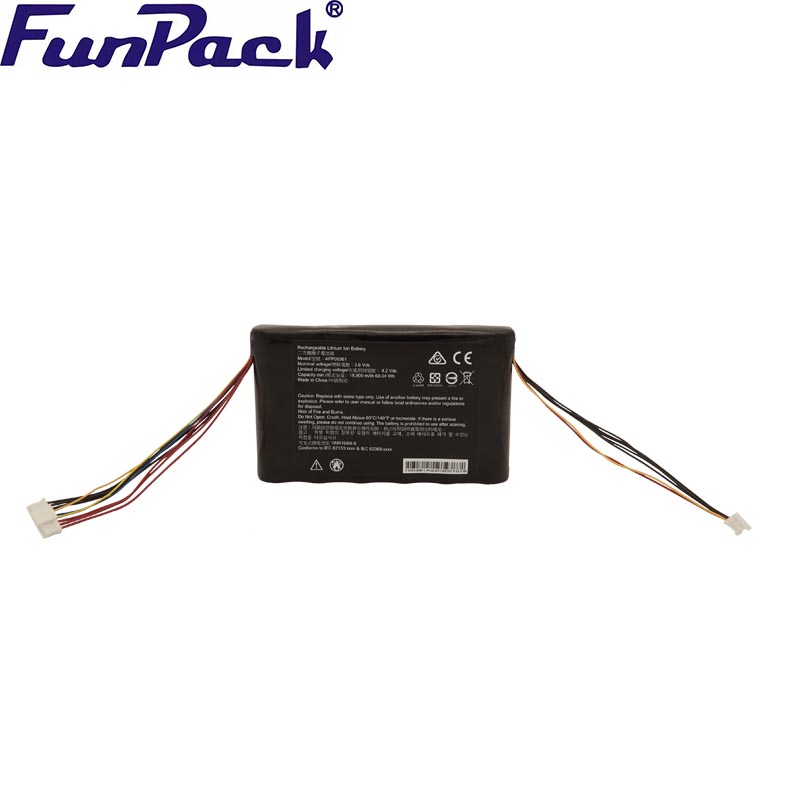

1S6P 18900mAh 3.6V Lithium-ion Rechargeable Battery with PCB
Product Description:
Worldwide approvals and certification of safety standards
No development costs, fast time-to-market
Life expectancy: Up to 80% of initial capacity after 300 cycles
Smart batteries with numerous features according to the SMBus
specification
Rechargeable batteries have built-in high quality PCB board,
thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.
High Capacity with Small Size
Product Parameters:
| Item | Specification | Standard |
| Pack Configuration | 1 Series 6 parallel (1S6P) | |
| Model | APP00361 | |
| Standard Environmental Test Conditions | |
| 1):Unless otherwise specified, all tests stated in this Product
Specification are conducted at below conditions: | |
| Temperature: 25 ± 3°C (“Temperature Condition”) | |
| Humidity: 65 ± 20% RH (“Humidity Condition”) | |
| 2):Numeric criteria annotated by “*” means such criteria are only
applicable to fresh unused Product within 30 days from manufacture.
Products either have been used or stored for a period longer than
30 days by Customer and/or its customer may exhibit an inferior
numeric parameter than such criteria. Customer agrees that such
occurrence does not constitute non conformance of specification | |
| *Minimal Capacity | 18900mAh | |
| Typical Capacity | 19800mAh | |
| *Typical Voltage | (3.6*1S6P) V | |
| Charge Cutoff Voltage | (4.2*1S6P) V | |
| Voltage at End of Discharging | (3.0*1S6P)V | |
| Maximum discharge current | -20~60°C | 2000mA |
| Discharge | -30℃ to -20℃: ≤0.1Cmin discharge to 3.0V | |
| -20℃ to 60℃: ≤0.2Cmin max discharge to 3.0V | |
| Storage Temperature | -20 to 50℃: 1month recovery≥85%,thickness swelling ≤3% | |
| -20 to 40℃:3months recovery≥80%,thickness swell ing ≤2% | |
| -20 to 20℃: 6months recovery≥75%,thickness swell ing ≤1% | |
| *Initial resistance | ≤ 80mΩ | |
| Allowable Humidity Range | 65±20% | |
| *Pack Voltage (V) (as of shipment, Alternative) | 3.30~3.65V | |
| *RT Cycle life | #1~300 cycle @23±2℃, comply with Item 3.2, charging
and discharging completely, #301 cycle, comply with
Item 3.2 to test the remained capacity(RSOC). | More than 2,300mAh (> 70%) |
| Pack Weight (Approx) | 305g max(Ref) | |
| Size | 19*108*70mm | |
Capacity | Constant current and constant voltage Charge voltage:4.2V,cut-off ≦200mA Charge current :1675mA Discharge current: 670mA (cut-offat 2.8V) | 18,900mAh(Min). 19,800mAh(Typ) |
Standard Charging Current | @ 0~45°C | 1675mA |
Standard Disharging Current | @ -20~60°C | 800mA |
Nominal Cut-off Voltage | End of Voltage(Discharge) for Battery Pack*a | 2.8V |
Recommended Cut-off Voltage | End of Voltage (Discharge)for Device Setting*a | 3.4~3.5V |
Charge Method | Constant Current and Constant Voltage With the specific charger | CC-CV |
Maximum Charging
Current | Charge current 4.20V@10℃~45℃
Charge current 2.5V~3.0V@ 10℃~45℃
Charge current under 2.5V~3.0V@ 10℃~45℃ | 5000mA
670mA
330mA |
Main Applications
Mainly used for safe lock, Smart locks for shared bikes
Main Functions
Lithium Polymer batteries make it possible for small objects to
achieve intelligence. Bendable Lithium Polymer cells
open up new applications for lithium-ion batteries. For small, thin
and flexible devices such as smart cards, trackers
and smart wearables, Lithium Polymer battery can provide a certain
amount of electric energy to drive their functions
of signal transmission or data acquisition. And Lithium Polymer
secondary battery allows charging and discharging
cycle, broadening the servicing life of electronics products.
